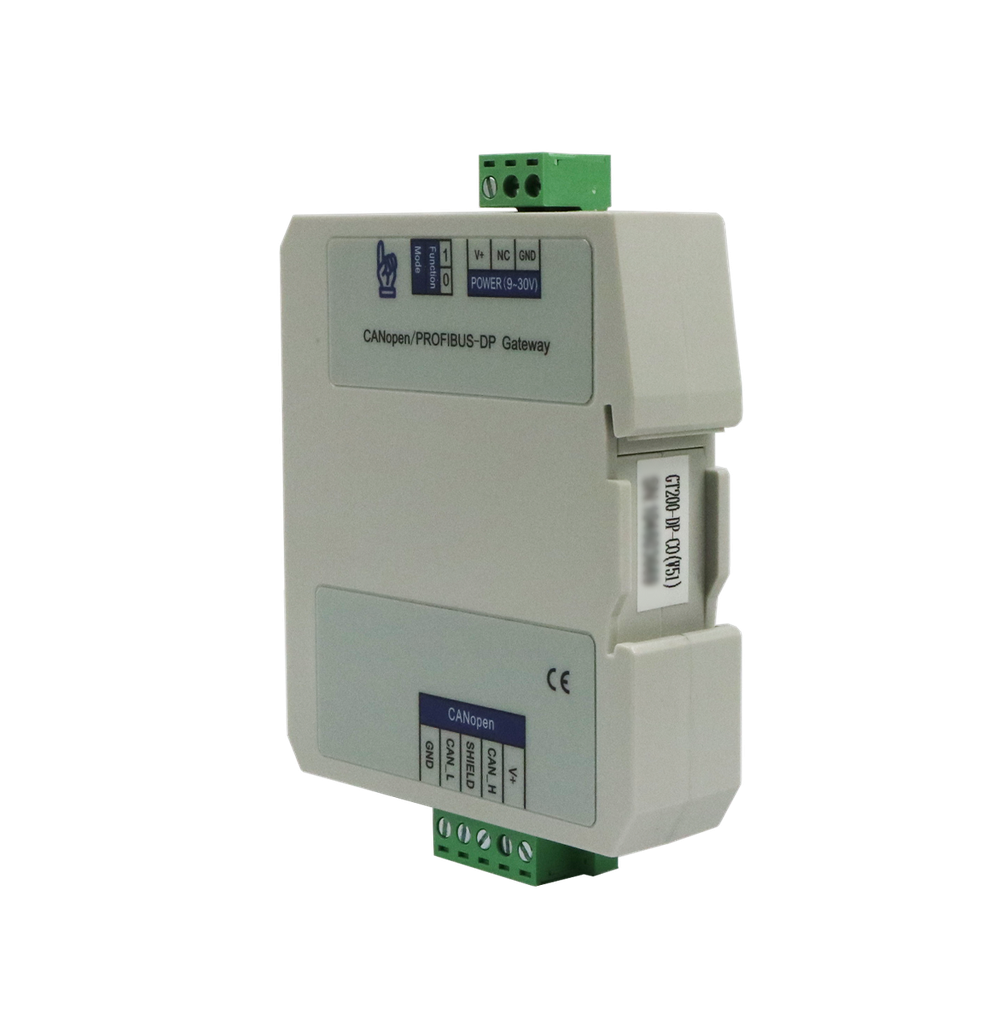

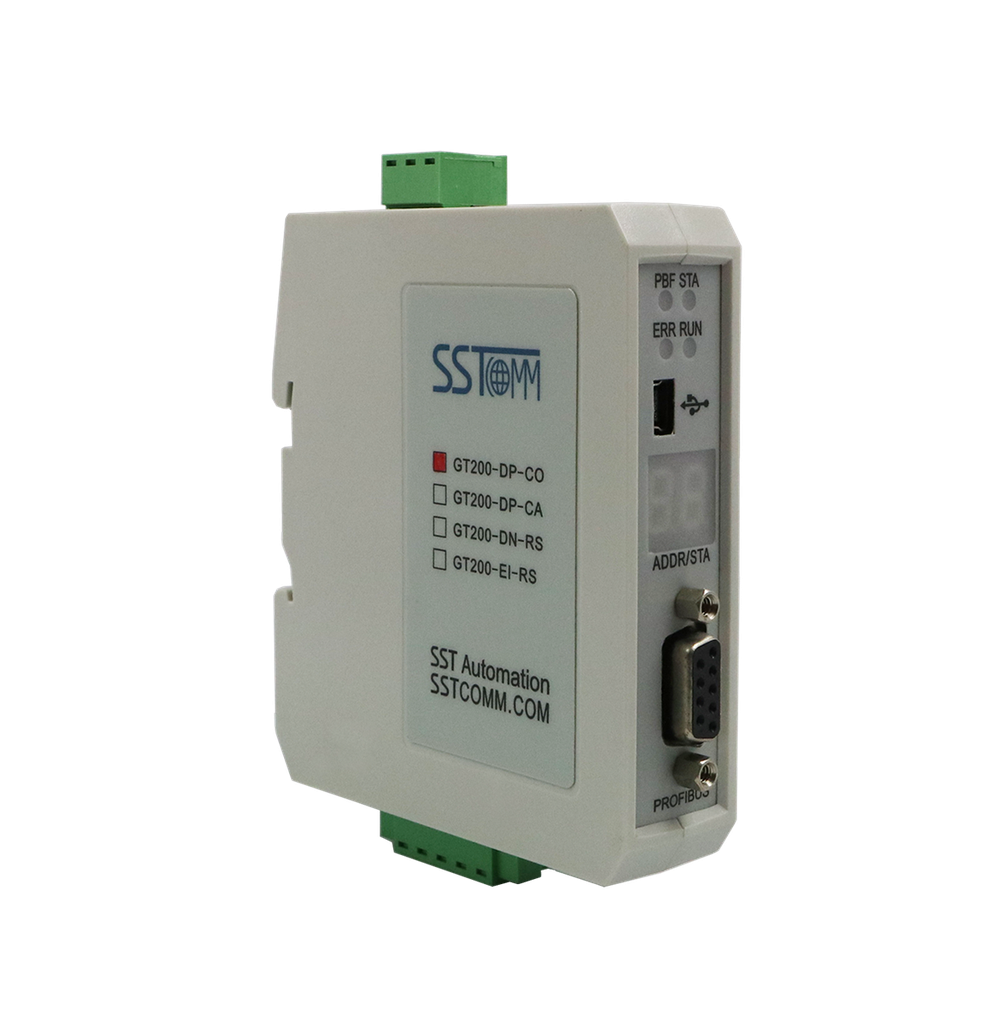

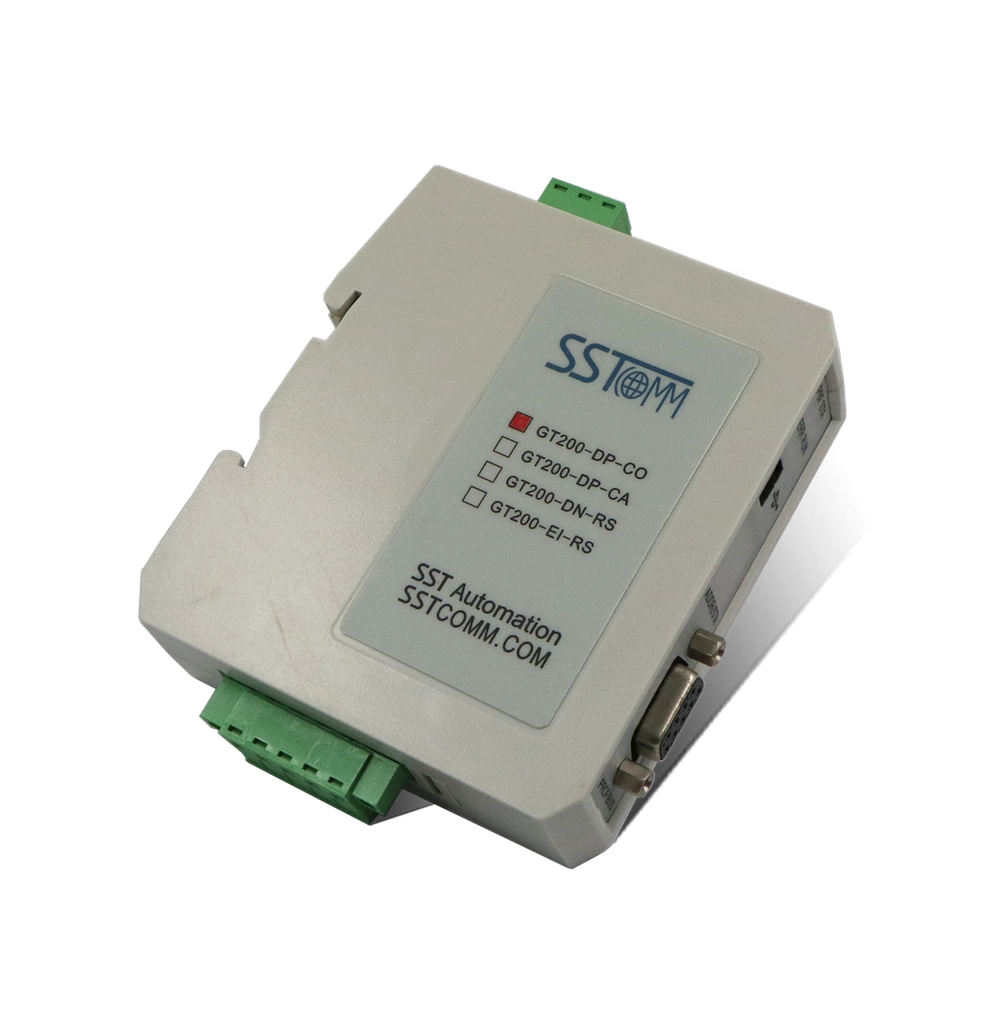

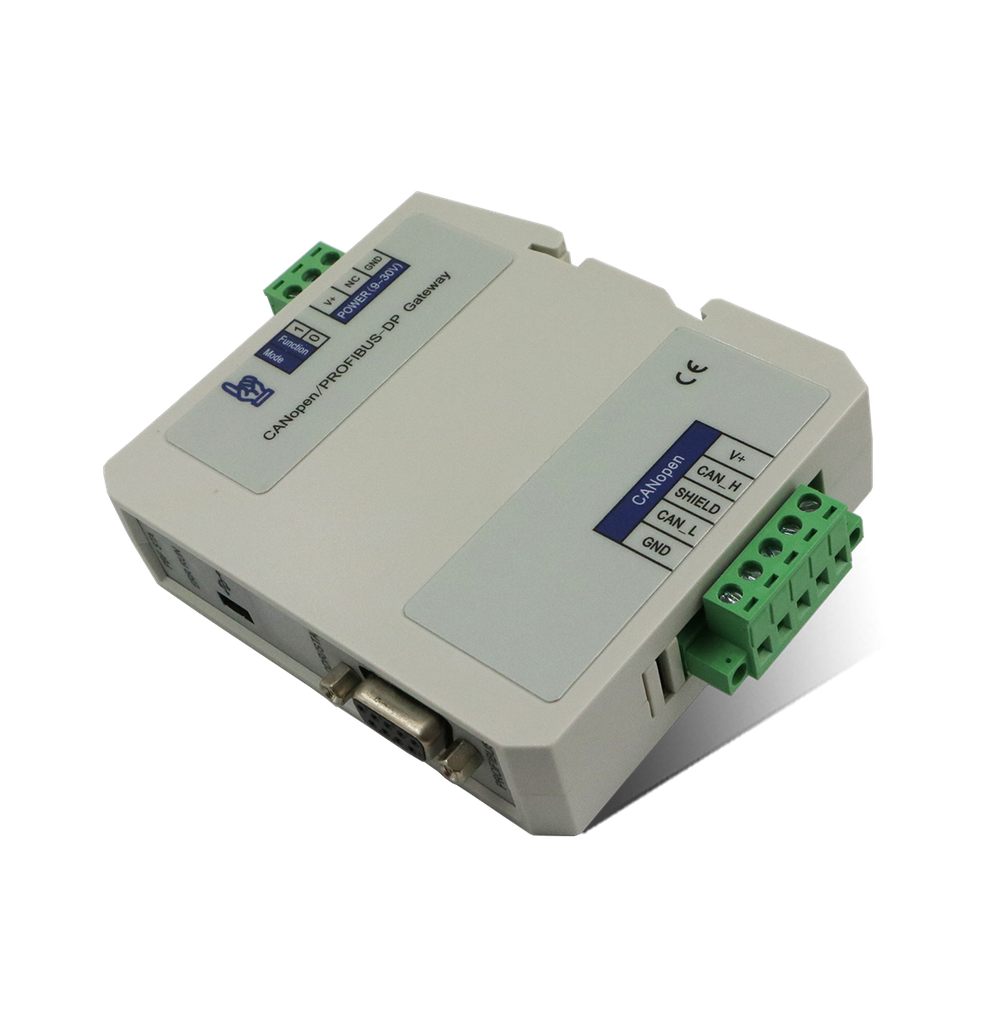

CANopen / PROFIBUS DP Gateway GT200-DP-CO

Model GT200-DP-CO
Acts as a client/server on CANopen
Max Input: 244 bytes;Max Output: 244 bytes;Max Input+Output: 488 Bytes.
CANopen profie DS-301 V4.02
CIA Draft Recommendation 303
Supports node guarding, Heartbeat and NMT functions as CANopen master.
Supports. Heartbeat as CANopen server
Easy configuration with free SST-CP-CFG software tool
Operating Temp -40°F to 158°F (-40 ºC to 70 ºC);Rel. Humidity: 5%-95% RH non-condensing
Dimension(W*H*D): 1.6in*4.9in*4.5in(40mm*125mm*110mm).
Mounting DIN Rail Mounting(35mm).

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 74,450.00 74450.0 INR ₹ 74,450.00

₹ 74,450.00

    This combination does not exist.

    Add to Cart
