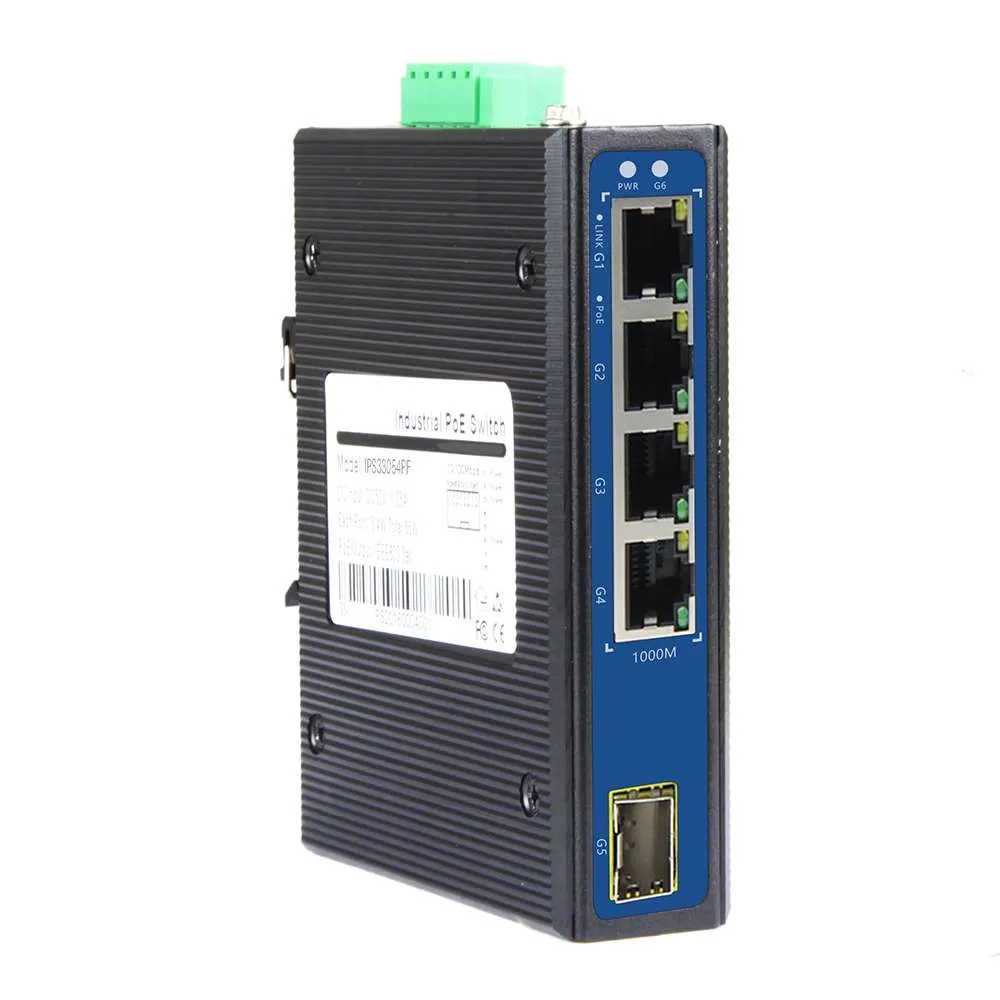

Factory 5 Ports Full Gigabit Industrial Unmanaged Ethernet Fiber Switch

Product Code XC-IS1805
Description Factory 5 Ports Full Gigabit Industrial Unmanaged Ethernet Fiber Switch
Connection CE
Model XC-IS1805
Interface 4*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber slot port (Data) 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)
Ethernet Port Port 1-4 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Network Protocol IEEE802.3 10BASE-T IEEE802.3u 100BASE-T/TX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-X IEEE802.3u 100BASE-FX IEEE802.3x.
PoE Standard IEEE802.3af/at
SFP Port Characteristic Gigabit SFP+ optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.
Forwarding Mode Store and Forward
Switching Capacity 12Gbps
Forwarding Rate@64byte 7.44Mpps
Buffer Memory 1M
Jumbo Frame 10K
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
MTBF 100000 hours
Power Supply Pin Default 1/2(+), 3/6(-);
Working Voltage 12-57VDC; 5P industrial phoenix terminal, anti-reverse protection.
Installation Desktop, 35mm DIN rail
Power Consumption Standby:<2W; Full load:<10W
LED Indicator Power: PWR (green), Network: Link, Link/Act (green);
Power Supply No, optional 48V/120W or 48V/240W industrial power supply
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing
Dimension (L*W*H) 119*100*30mm
Net /Gross Weight <0.7kg/<1.0kg
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard)
Certification CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
Mechanical Properties IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)
