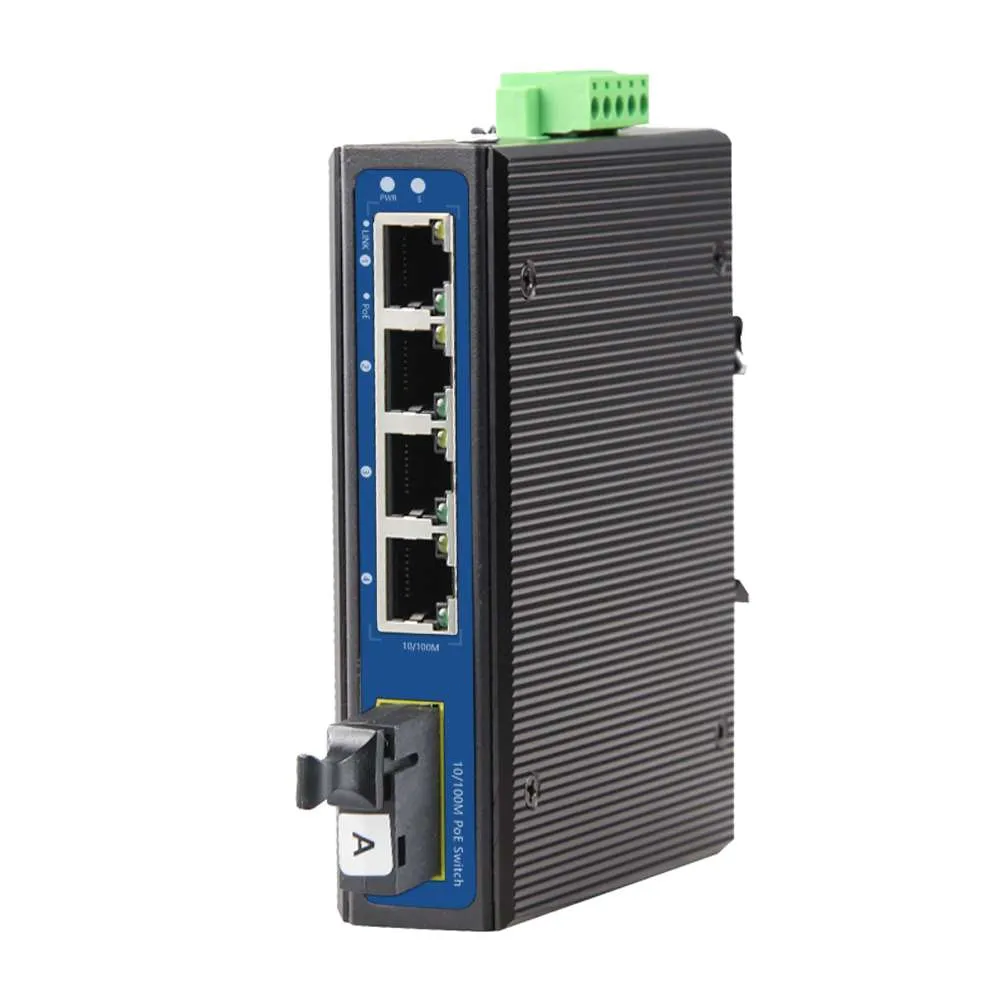

100M 4 Port Industrial POE Switch with SC Fiber Port
Specifications
| Fixed Port | 4*10/100Base-T/TX PoE port (Data/Power) 1*155M uplink SC port (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
| Ethernet Port | 10/100Base-T/TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IIEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| PoE Port | Port 1-4 |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 1.6Gbps |
| Forwarding Rate@64byte | 0.744Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frames | 1536Byte |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| Power Supply Pin | Default:1/2 (+), 3/6 (-) |
| Working Voltage | 48-57VDC; 5P industrial phoenix terminal, anti-reverse protection. |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 60W /48VDC Optional 120W/48VDC |
| Power Consumption | Standby:<3W; Full load:<36W to Standby:<3W; Full load:<60W |
| Power Supply | No, optional 48V/60W or 48V/120W industrial power supply |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5(Link/Act)/ (Green); POE indicator: PoE (Orange) |
| Operation TEMP / Humidity | -40~+85°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+125°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 119*100*30mm |
| Net /Gross Weight | <0.5 kg / <0.7 kg |
| Installation method | Desktop, 35mm DIN rail |
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class A IEC61000-6-2(Common Industrial Standard) |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 1.00 ₹ 1.00₹ 1.00 |
