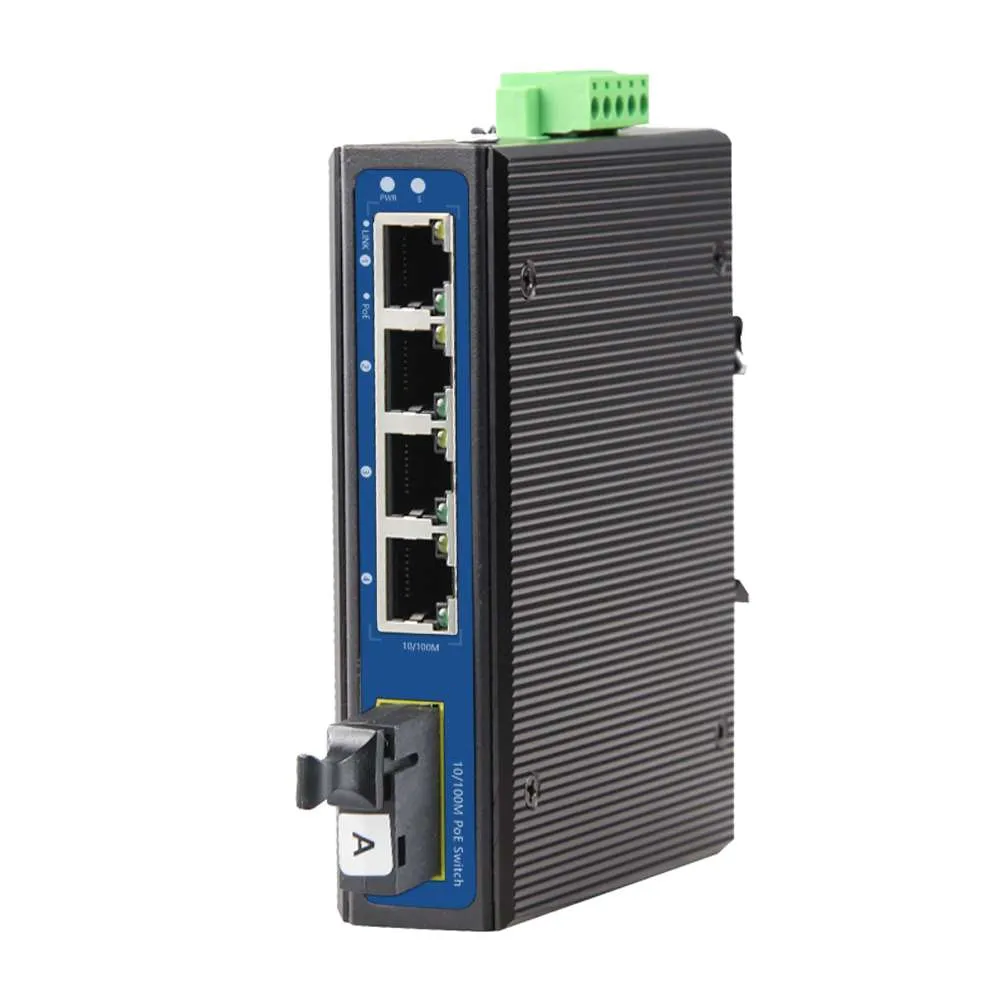

Multi-mode Dual Fiber 2km 100M 4 Port Industrial PoE Switch 850/1310nm Outdoor PoE Switch

Product Code XC-PIS1705-4FE
Description Multi-mode Dual Fiber 2km 100M 4 Port Industrial PoE Switch 850/1310nm Outdoor PoE Switch
Make XEXAGON
Connection CE
Interface 4*10/100Base-T/TX PoE ports (Data/Power) 2*100Base-T/TX uplink RJ45 port (Data) 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)
Ethernet Port 10/100Base-T/TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IIEEE802.3x
PoE Standard IEEE802.3af/at
SFP Port Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
PoE Port Port 1-4
Forwarding Mode Store and Forward
Switching Capacity 1.6Gbps
Forwarding Rate@64byte 0.744Mpps
MAC 1K
Buffer Memory 768K
Jumbo Frames 1536Byte
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
Power Supply Pin Default:1/2 (+), 3/6 (-)
Working Voltage 48-57VDC; 5P industrial phoenix terminal, anti-reverse protection.
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 60W /48VDC to 120W /48VDC
Power Consumption Standby:<2W; Full load:<18W to Standby:<2W; Full load:<32W
Power Supply No, optional 48V/60W or 48V/120W industrial power supply
LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5(Link/Act)/ (Green); POE indicator: PoE (Orange)
Operation TEMP / Humidity -40~+85°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing
Dimension (L*W*H) 119*100*30mm
Net /Gross Weight <0.5kg/<0.7kg
Installation method Desktop, 35mm DIN rail
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class A IEC61000-6-2(Common Industrial Standard)
Certification CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
