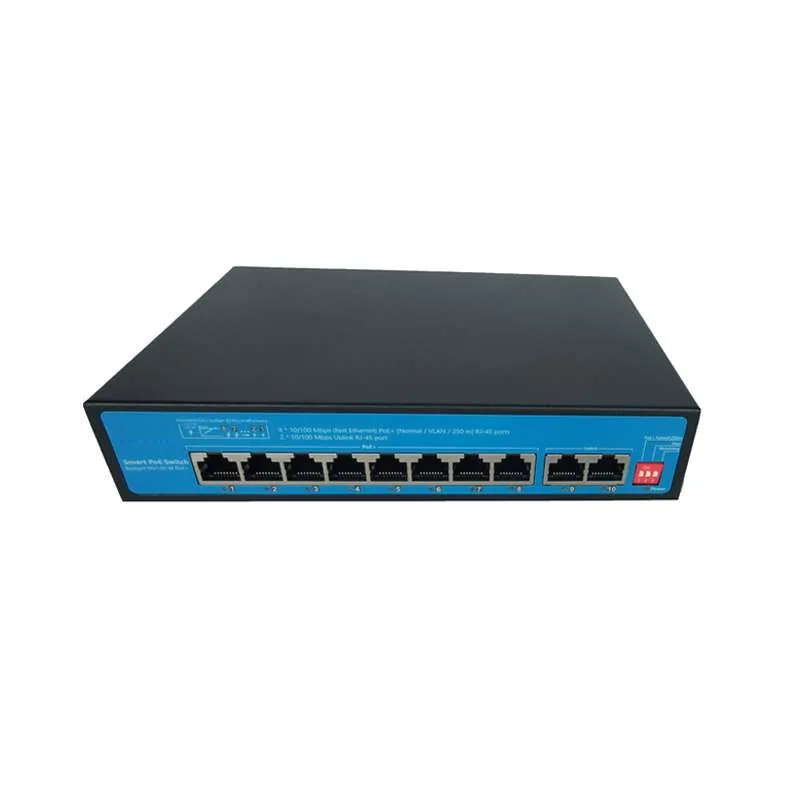

Best 8 Port 100M PoE Switch with Build-in Power Supply Wholesale

Product Code XC-S1810CF-AP
Description Best 8 Port 100M PoE Switch with Build-in Power Supply Wholesale
Make XEXAGON
Connection CE
Model XC-S1810CF-AP
Fixed Port 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-T Uplink RJ45 ports (Data)
POE Port Port 1-8 support PoE
Function With the Dial code switch,1-8 Ports support watch dog function, Priority port, Port self-healing, Vlan & 250M long distance, video monitoring and isolation mode;
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x
Ethernet Port Feature 10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode Store and Forward(Full Wire Speed 0.89Mpps)
Forwarding Mode 14.88Mpps
MAC 2K
Buffer Memory 1.25M
Twisted Pair Transmission 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-)
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 120W
Power Consumption Standby:<4W;Full load:<120W
LED Indicator Power indicator: PWR (red); Network indicator : 1-4/G1-2 (green); POE indicator: PoE (red)
Power Supply Build-in power adaptor AC100~240V 50-60Hz,65W
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 195*130*40mm
Net /Gross Weight <1kg / <1.2kg
Installation desktop type ,wall mounted
Port lightning protection / level Port lightning protection : 4KV 8/20us; Protection level: IP30
Certification CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
Price:

₹ 3,600.00 3600.0 INR ₹ 3,600.00

₹ 3,600.00
