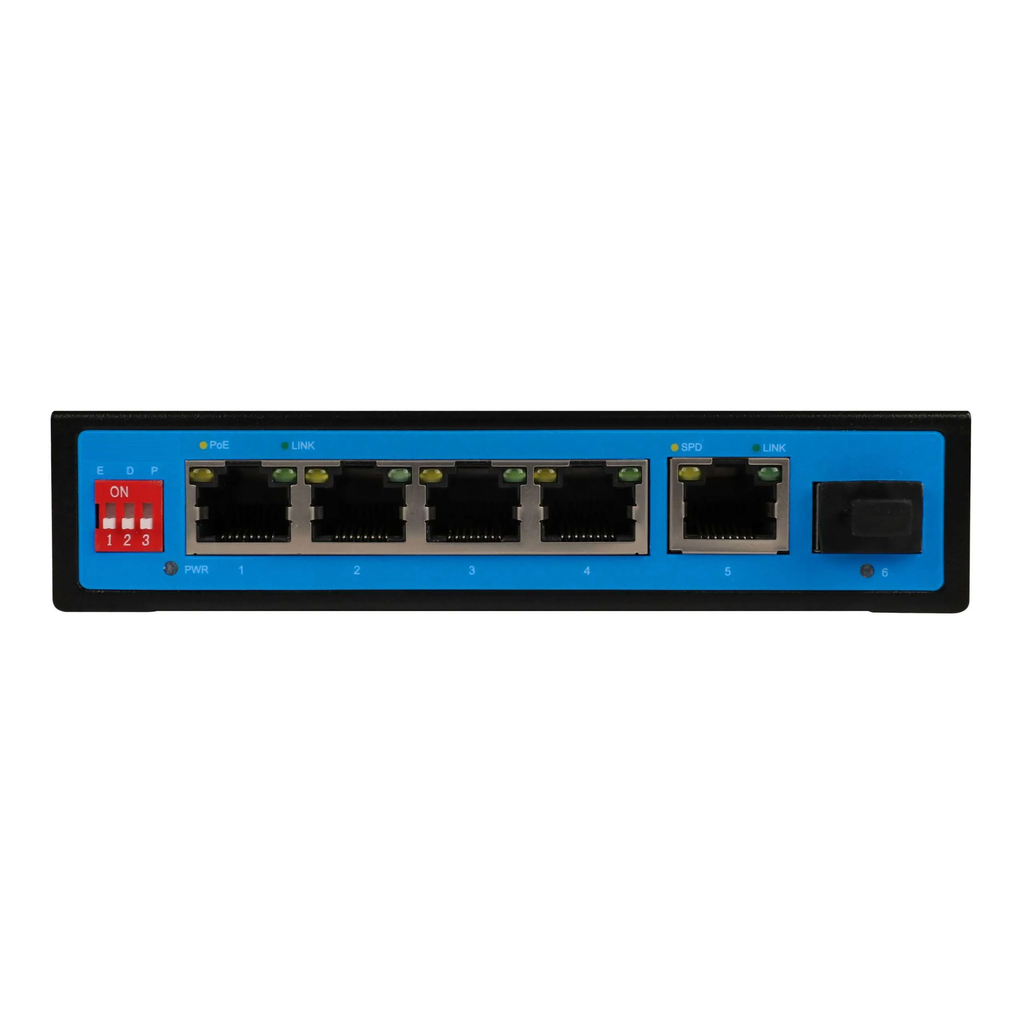

Best 6 Ports Full Gigabit PoE Switch
Specifications
| Model | XC-S1906CFG-DP |
| Fixed Port | 4*10/100/1000Base-T/TX PoE ports (Data/Power) 1*10/100/1000Base-T Uplink SFP slot (Data) 1*100/1000Base-X Uplink RJ45 port (Data) |
| POE Port | Port 1-4 support PoE @ IEEE802.3af/at; |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Ethernet Port Feature | 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 12Gbps |
| Forwarding Rate@64byte | 8.93Mpps |
| MAC | 4K |
| Buffer Memory | 2M |
| Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) |
| Optical Fiber Cable | Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. |
| Power Supply Pin | Default 12(+) /36(–) |
| Max / Average Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | Default: 60W (52VDC); Optional: 120W |
| Power Consumption | Standby:<2W; Full load:<60W/120W |
| Power Supply | External power adapter |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green), 6Speed/ (Orange); POE indicator: PoE (Orange) |
| Fan | Non-Fan, silent working status can satisfy more users with different requirement. |
| Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP /Humidity | -40~+75°C;5%~95% RH non condensing |
| Protection Level | IP30 |
| Dimension (L*W*H) | 127*97*28mm |
| Net /Gross Weight | <1.2kg / <2kg |
| Installation method | desktop type, wall mounted,19-inch 1U cabinet installation |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 5,350.00 ₹ 5,350.00₹ 5,350.00 |
