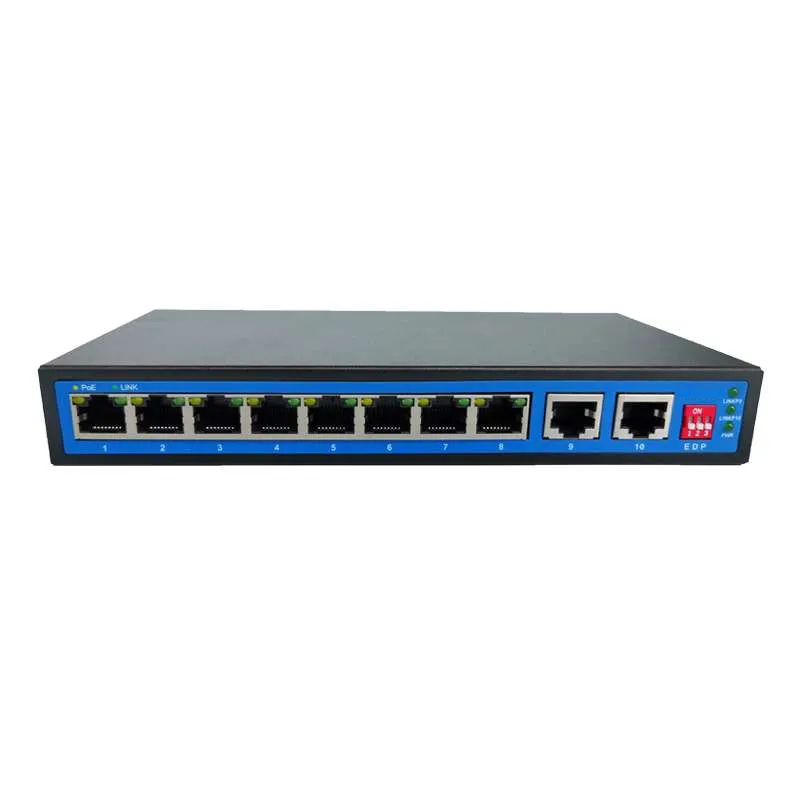

8 Port 100M PoE Switch with 2*1000M RJ45 uplink and Build-in Power Supply
Specifications
| Interface | 8*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX Uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-8 support PoE |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IIEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| SFP Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| POE Port | Port 1-2 |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 5.6Gbps |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale |
| Buffer Memory | 1.25M |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| Power Supply Pin | Default:1/2 (+), 3/6 (-) |
| Working Voltage | 48-57VDC; 5P industrial phoenix terminal, anti-reverse protection. |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 120W |
| Power Consumption | Standby:<4W;Full load:<120W |
| Power Supply | External power adapter |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9-10(Link/Act)/ (Green); POE indicator: 1-8PoE (Orange) |
| Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension (L*W*H) | 195*130*40mm |
| Net /Gross Weight | <1kg / <1.2kg |
| Installation method | Desktop, 35mm DIN rail |
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class A IEC61000-6-2(Common Industrial Standard) |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; |
