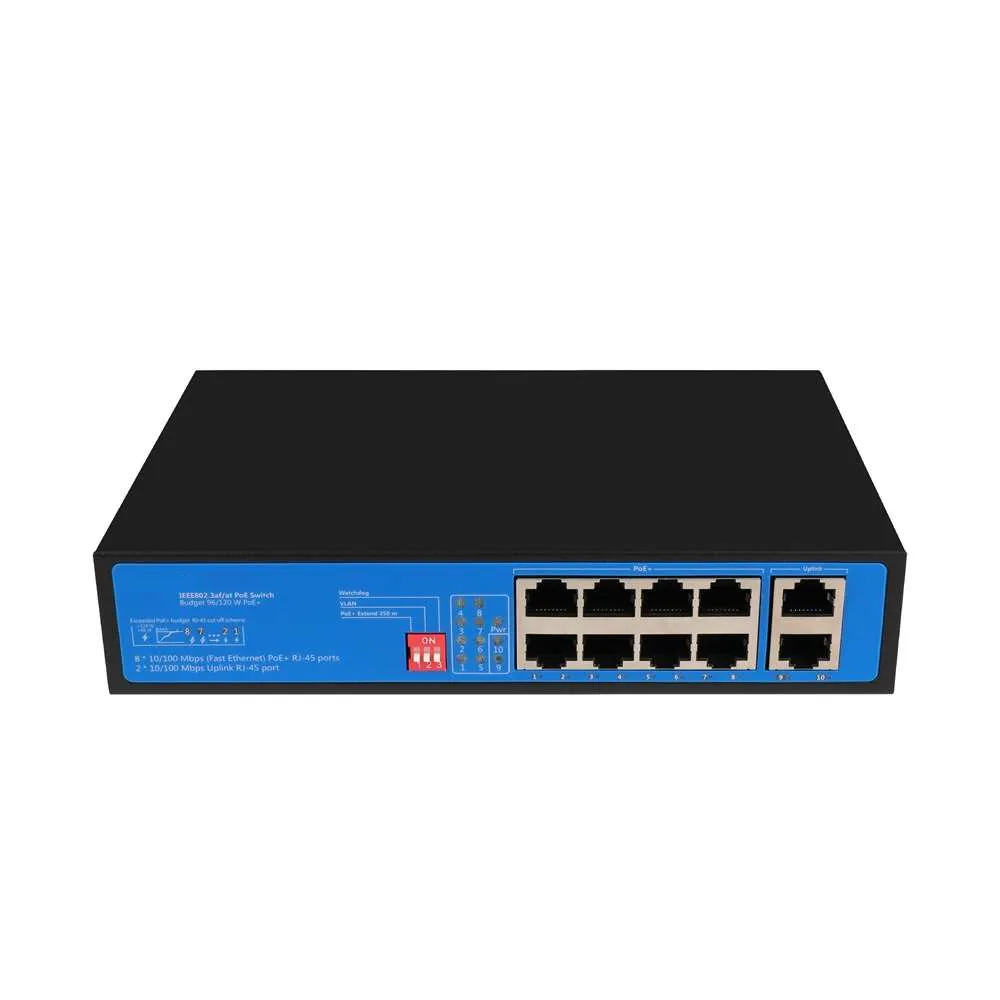

8 Port 100M Unmanaged PoE Switch with Build-in Power Supply

Product Code XC-S1910CF-AP
Description 8 Port 100M Unmanaged PoE Switch with Build-in Power Supply
Connection CE
Fixed Port 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-T Uplink RJ45 ports (Data)
POE Port Port 1-8 support PoE @ IEEE802.3af/at
Function The port 1-8 support 10M/250 meters long distance transmission.
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature Store and Forward (Full Wire Speed)
Forwarding Mode 1.49Mpps
Buffer Memory 1.25M
Twisted Pair Transmission 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-)
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 120W (52VDC)
Power Consumption Standby:<4W;Full load:<96W
LED Indicator Power indicator: PWR (green); Network indicator : 1-8(G1-2 (green); POE indicator: PoE (green)
Power Supply Build-in power adaptor AC100~240V 50-60Hz,120W
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 191*105*29mm
Net /Gross Weight <1kg / <1.5kg
Installation method desktop type ,wall mounted
Port lightning protection / level Port lightning protection : 4KV 8/20us; Protection level: IP30
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 8,250.00 8250.0 INR ₹ 8,250.00

₹ 8,250.00

    This combination does not exist.

    Add to Cart
