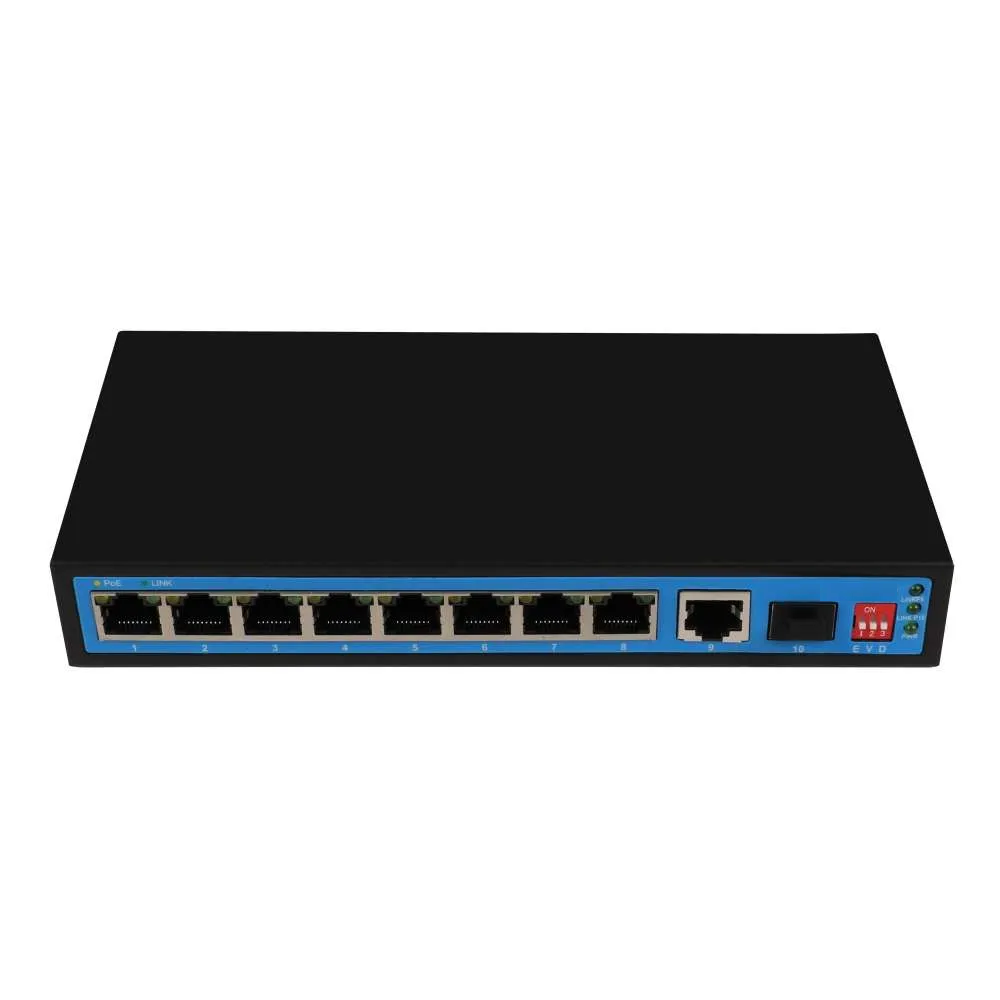

Good Quality 10 Ports Full Giga PoE Switch
Specifications
| Model | XC-S1910CFG-DP |
| Interface | 8*10/100/1000Base-T/TXPoE ports (Data/Power) 1*10/100/1000Base-T/TX Uplink RJ45 ports (Data) 1*100/1000Base-X Uplink SFP ports (Data) |
| Network Management Type | L2+ |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
| Ethernet Port Feature | Port 1-48 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| MAC | 8K |
| Buffer Memory | 2M |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| Optical Fiber Cable | Multi-mode:850nm 0~300M(10G),850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-52port 100M-(Link/Act)/ (Orange),1/2.5/10G-(Link/Act)/ (Green); SYS:(Green) |
| Reset Switch | Yes, One-button factory reset |
| Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP /Humidity | -40~+75°C;5%~95% RH non condensing |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Dimension (L*W*H) | 200*105*29mm |
| Net /Gross Weight | <1.8kg / <2.5kg |
| Installation | Desktop, 19-inch 1U cabinet |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 7,500.00 ₹ 7,500.00₹ 7,500.00 |
