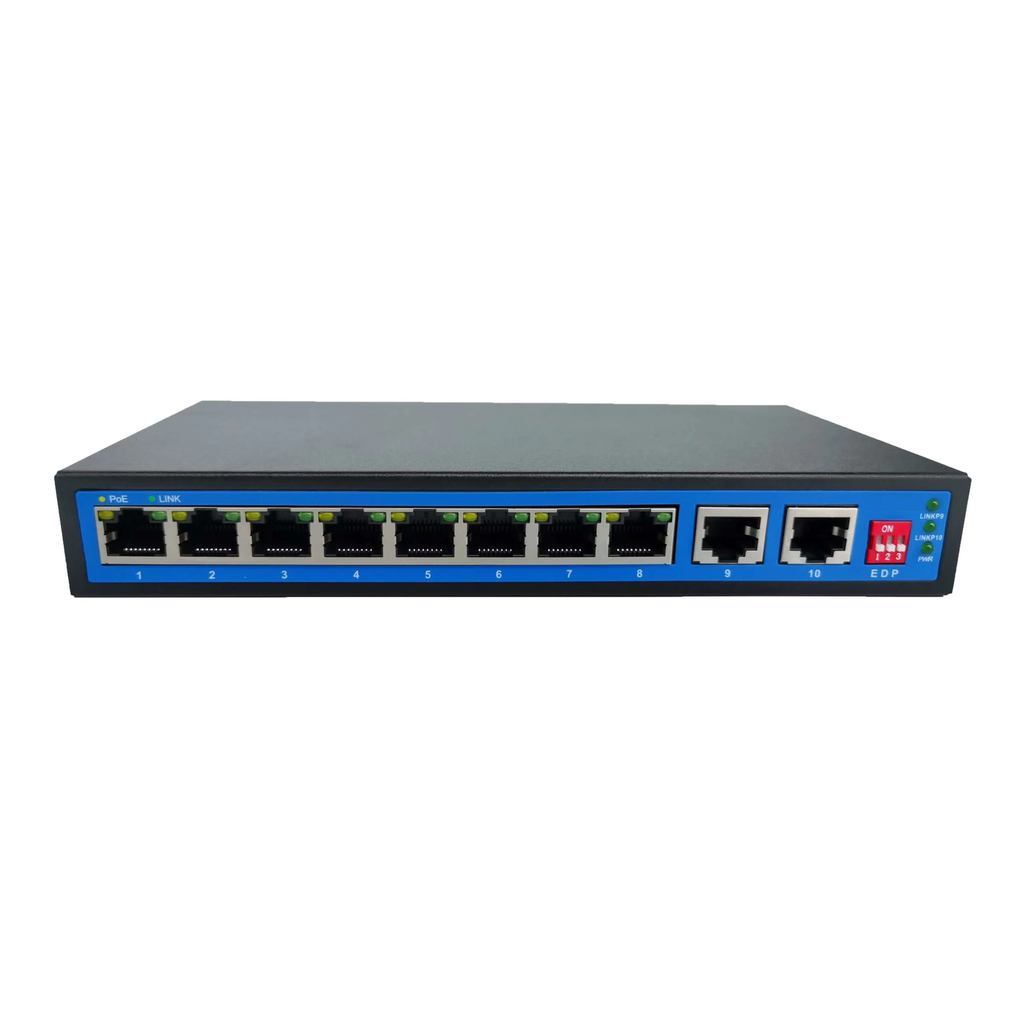

Hot Sales 10 Ports Full Gigabit PoE Switch with 2 Giga*RJ45

Product Code XC-S1910CG-DP
Description Hot Sales 10 Ports Full Gigabit PoE Switch with 2 Giga*RJ45
Connection CE
Model XC-S1910CG-DP
POE Port Port 1-8 support PoE @ IEEE802.3af/at
Feature With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdogfunction), Automatic solve the camera problem &reduce after-sale.
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-Xadaptive
Forwarding Mode Store and Forward
Switching Capacity 52Gbps (Non-blocking)
Forwarding Rate@64byte 38.69Mpps
Buffer Memory 4M
Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter)
Power Supply Pin Default: 1/2(+),3/6(-)
Max / Average Power Per Port 30W/15.4W
Total PWR / Input Voltage 120W (52VDC)
Power Consumption Standby:<4W; Full load:<120W
Power Supply External power adapter
LED Indicator Power indicator: PWR (green); Network indicator: 1-24/G1-2 (green); POE indicator:PoE (green)
Operation TEMP/Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP /Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 200*105*29mm
Net /Gross Weight <1.8kg / <2.5kg
Installation method desktop type, wall mounted
protection level ng protection: 4KV 8/20us; Protection lev
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 6,760.00 6760.0 INR ₹ 6,760.00

₹ 6,760.00
