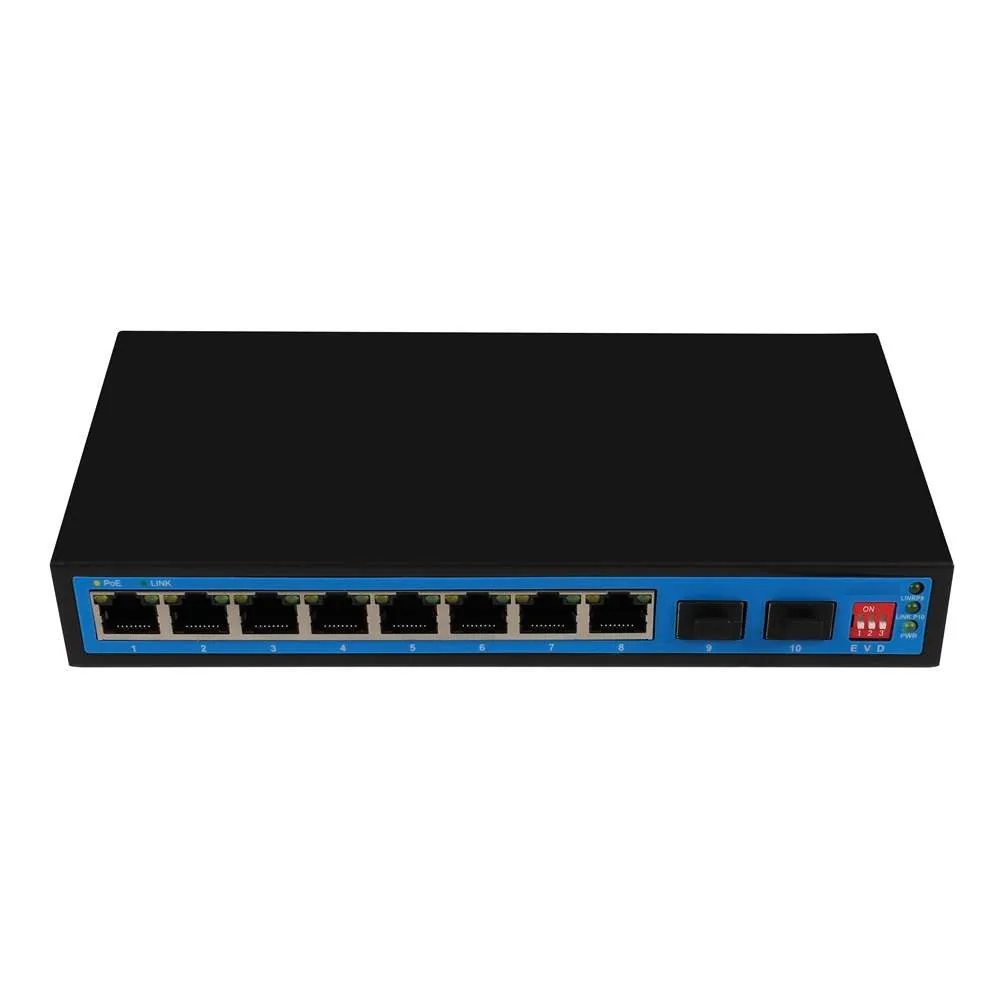

Good Quality 10 Ports Full Gigabit PoE Switch with 2 Giga*RJ45

Product Code XC-S1910FG-DP
Description Good Quality 10 Ports Full Gigabit PoE Switch with 2 Giga*RJ45
Make XEXAGON
Connection CE
Model XC-S1910FG-DP
Fixed Port 8*10/100/1000Base-T/TX PoE ports (Data/Power) 2*100/1000Base-T Uplink SFP slot (Data)
POE Port Port 1-8 support PoE @ IEEE802.3af/at
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode Store and Forward
Switching Capacity 20Gbps
MAC 8K
Buffer Memory 4M
Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-)
Max / Average Power Per Port 30W/15.4W
Total PWR / Input Voltage Default: 60W (52VDC); Optional: 120W
Power Consumption Standby:<2W; Full load:<60W/120W
Power Supply External power adapter
LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green), 6Speed/ (Orange); POE indicator: PoE (Orange)
Operation TEMP/Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP /Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 191*105*29mm
Net /Gross Weight <0.6kg / <1.2kg
Installation method desktop type, wall mounted,19-inch 1U cabinet installation
protection level Port lightning protection: 4KV 8/20us; Protection level: IP30
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
Price:

₹ 7,600.00 7600.0 INR ₹ 7,600.00

₹ 7,600.00
