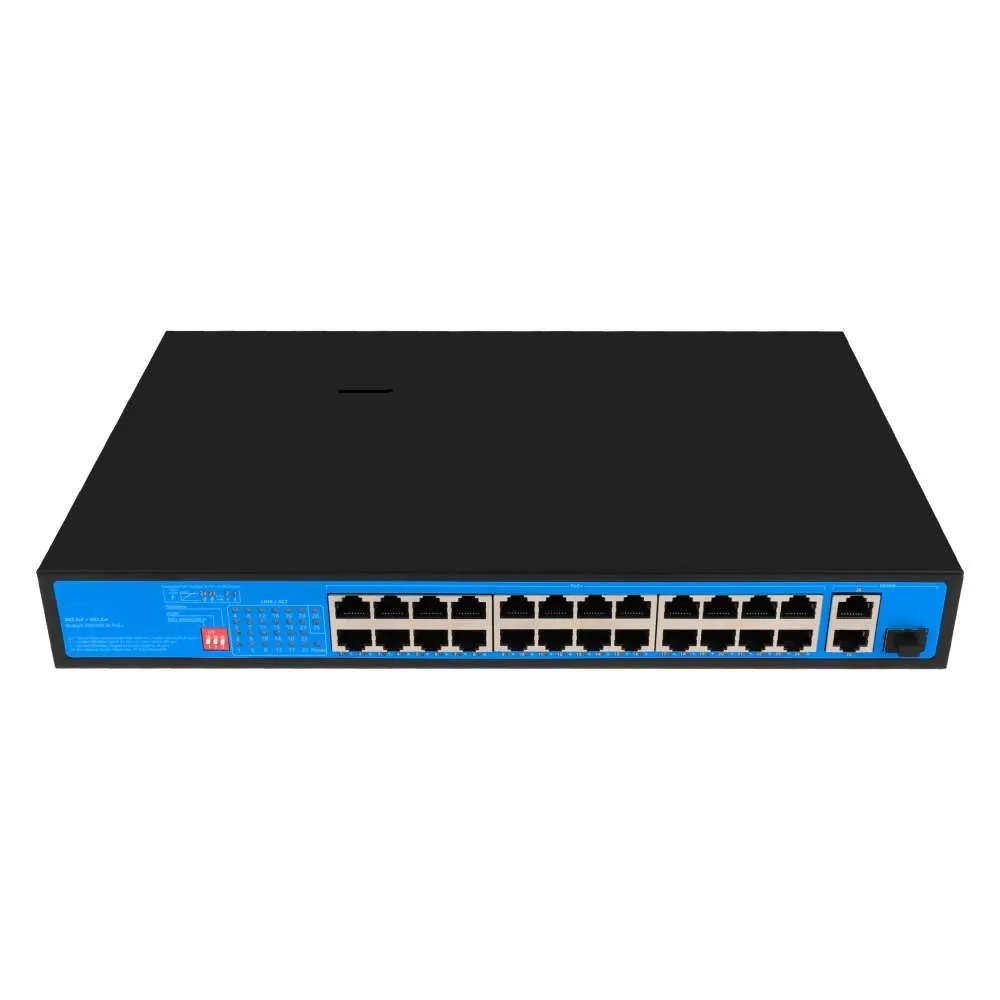

24 Port 100M PoE Switch with 1*1000M RJ45+1*1000M TP/SFP Combo Port
Specifications
| Model | XC-S1926CF-AP |
| Interface | 24*10/100/1000Base-T PoE ports (Data/Power) 4*1/10G uplink SFP+ fiber slot ports (Data) 1*Console RS232 port (115200,N,8,1) |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3ae 10GBase-SR/LR; IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Ethernet Port Feature | Port 1-24 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive |
| Fiber Port Feature | 1G/2.5G/10G SFP fiber interface (Fiber module is not included, need to order separately, module optios include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 52Gbps (Non-blocking) |
| Forwarding Rate | 38.69Mpps |
| MAC | 8K |
| Buffer Memory | 4M |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) ;100BASE-TX: Cat5 or later UTP (≤100 meter) ;1000BASE-T: Cat6 or later UTP (≤100 meter) |
| Optical Fiber Cable | Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. |
| Power Supply Pin | Default: 1/2(+),3/6(-) |
| Max / Average Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | 300W (100-240V) |
| Power Consumption | Standby<25W; Full Load<400W / Standby<30W;Full Load<600W |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz 5A |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-24(Link/Act)/ (Orange),25-36(Link/Act)/ (Green); POE indicator: PoE (Green) SYS:(Green) |
| Reset Switch | Yes, One-button factory reset |
| Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP /Humidity | -40~+80°C;5%~95% RH Non condensing |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Dimension (L*W*H) | 330*204*44mm |
| Net /Gross Weight | <3kg / <4kg |
| Installation method | desktop type, wall mounted,19 inch 1U cabinet installation |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 16,100.00 ₹ 16,100.00₹ 16,100.00 |
