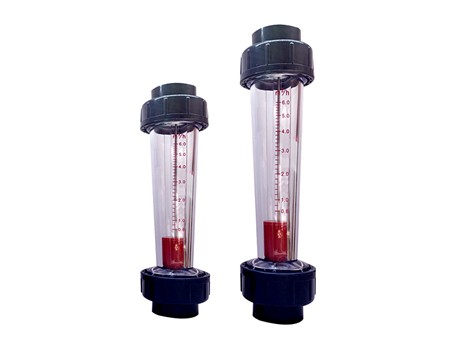

Plastic Flow Meter
Specifications
| HGRF-15 (L/h) Long tube Short tube | 5~50 , 6~60 , 10~100 ,16~160, 25~250 , 40~400 , 60~600 , 80~800 , 100~1000 |
| HGRF-20 (L/h) Long tube Short tube | 40-400 , 60~600 , 100~1000 |
| HGRF-25 (L/h) Long tube Short tube | 60~600, 100~1000, 160~1600 , 250~2500 , 300~3000 |
| HGRF-32 (m3/h) Long tube Short tube | 0.4~4 , 0.6~6 , 1~10 |
| HGRF-40 (m3/h) Long tube Short tube | 0.4~4 , 0.6~6 , 1~10, 1.2~12 |
| HGRF-50 (m3/h) Long tube Short tube | 0.4~4 , 0.6~6 , 1~10 , 1.6~16 |
| HGRF-65 (m3/h)Short tube | 5~25 , 8~40 , 12~60 |
| HGRF-80 (m3/h) Short tube | 5~25 , 8~40 , 12~60 |
| HGRF-100 (m3/h)Short tube Flange connection | 8~50 , 12~60 , 14~90 , 18~120 |
| HGRF-125 (m3/h)Short tube Flange connection | 15~150 , 22~180 , 25~200 |
| HGRF-130 (m3/h)Short tube Flange connection | 15~150 , 22~180 ,25~200 |
| Accuracy | ±4% |
| Temp. | 0-60℃ |
| Pressure | ≤0.6MPa |
More Information
HGRF Plastic Flow Meter is mainly made of AS and ABS plastics. It not only has good corrosion resistance, but also has the characteristics of small size, and the cone tube is not easily broken,
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 42,100.00 ₹ 42,100.00₹ 42,100.00 |
