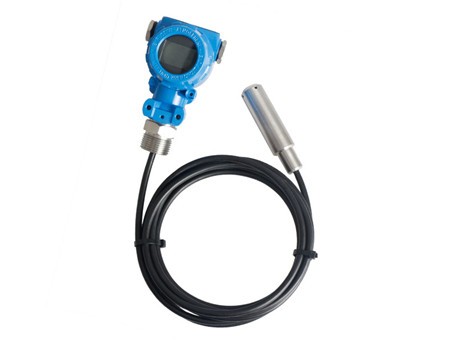

Isolated Type Level Transmitter

Product Code XN HPT612
Description Level Sensor / External Mounting
Connection CE
Range 0~1 M....500 M H2O optional
Output 4~20mA;0-10V/0-5V;RS485 RTU Modbus
Power supply 12VDC~30VDC or 3.6V Li-battery
Accuracy 0.15%F.S;0.25%F.S; 0.5%F.S optional
Working temperature -30°C~+85°C
Temp Compensation -10°C~50°C
Long Stability Standard: 0.2%F.S±0.05%
Alarm function With sound alarm output, optional.
Local Display LCD or LED
Zero Temp. Drift 0.3%FS/°C(≤100kPa);0.1%FS/°C(>100kPa)
Certificate CE,ExiaII CT6 Ga ,ATEX,RoHS
More Information

HPT612 Isolated Type Level Transmitter is features are-movable nose cone at the sensor which protects the diaphragm from damage. Units come equipped with a 270-pound tensile strength shielded and vented cable.

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 31,100.00 31100.0 INR ₹ 31,100.00

₹ 31,100.00
