Laser sensor
Specifications

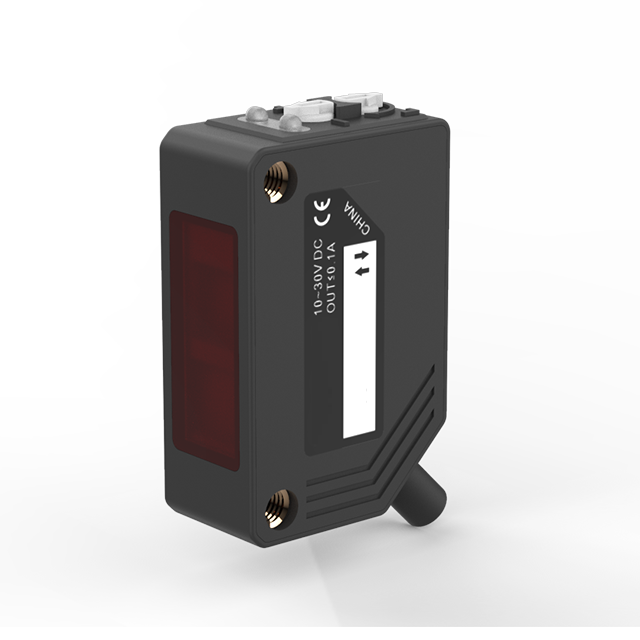

Model | XELE-TM30P Square type |
Detection mode | Thru-beam |
Detection distance | 30m |
Spot diameter | ±∅60mm/30m |
Indicator light | Working indicator light: green; Action indicator: Red |
Sensitivity regulation | Single coil potentiometer |
Output mode | NPN open collector |
Switch mode | L.on (light-in action)/D.on (light-shielding action) can be switched |
Response time | ≤2ms |
light source | Laser 650nm (modulation) Class 2 |
Working voltage | 10~30V DC |
Current consumption | ≤20mA |
Environmental illumination | Incandescent lamp: 3000 lux or less / Sunlight: 5000 lux or less |
Ambient temperature | -25℃~+55℃, no freezing |
Ambient humidity | 35%~85%RH, no condensation |
Protection circuit | Power reverse polarity protection,surge protection, short circuit protection |
Degree of protection | IP 65 |
Material | PBT + glass fiber (shell), PMMA (lens) |
Way out | 2M/3 core cable |
Anti-vibration | 10~50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions |
Accessories | Screwdriver |
In Stock: 0.0
Stock: | 0.0 Can Dispatch Immediately |
Factory Lead Time: | 15 Days |
Price: |
₹ 4,530.00 ₹ 4,530.00₹ 4,530.00 |
