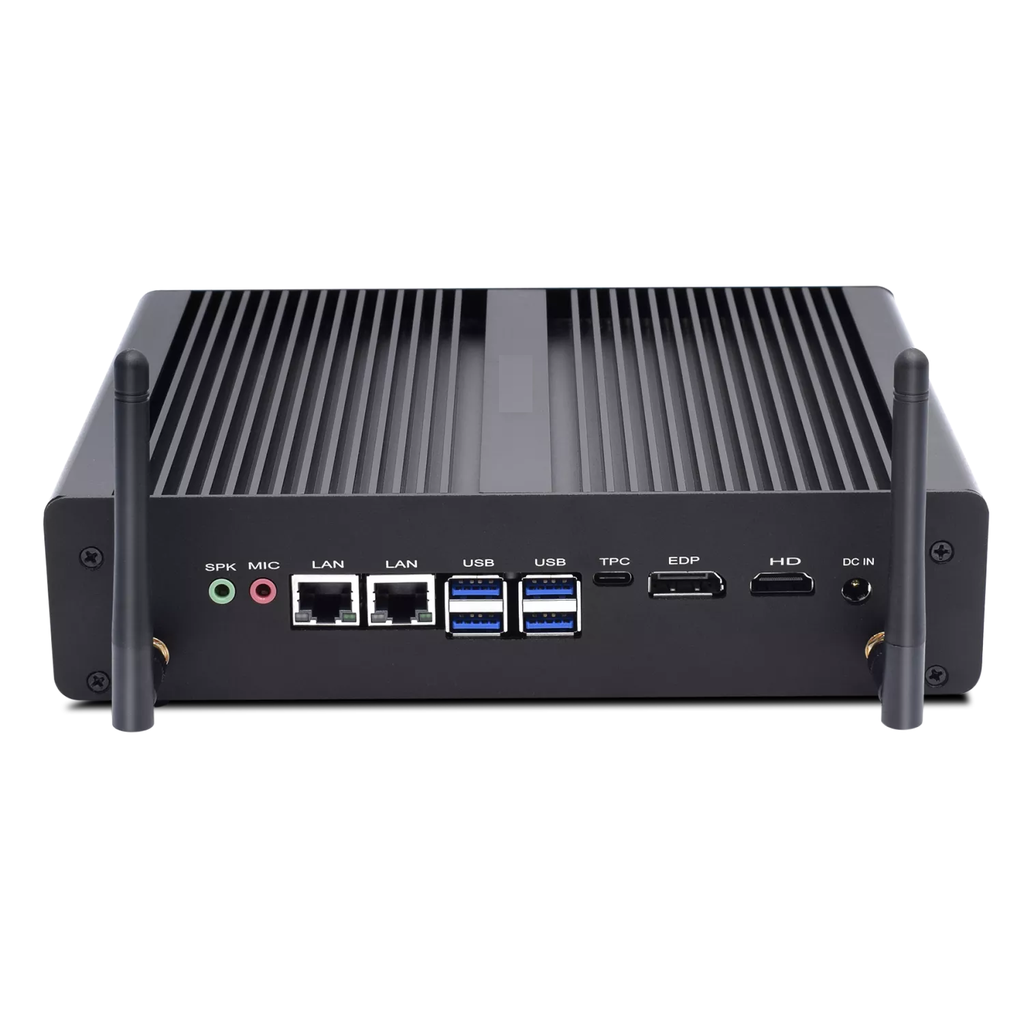

Mini Fanless Industrial PC Core i3 i5 and i7 CPU

Product Code XNP05B-T
Description Fanless Mini PC
Connection CE
CPU Intel Core i3-8145U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz) Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
TDP 15 W
CPU Lithography 14 nm
Memory Size 8 GB
Memory Types 260 pin DDR4 SO-DIMMs
Memory Channels Dual Channels
ECC Memory Don’t support
m.2 SSD 1 x M.2 KEY M for SATA&PCIE3.0 (M.2 2280, NVME)
SATA 2 x SATA3.0 for 2.5 inch HDD/SSD
mSATA No mSATA slot
Processor Graphics Intel® UHD Graphics 600
Power Adapter 12V Power Input, supply 12V 5A power adapter within the package
Auto Power On Support Auto Power On Function
USB Port 4 x USB 3.1 port, 4 x USB 2.0 port+1 x Type C 3.1
Audio 3.5mm 1 Jack, MIC in/ Line out
Video Type C+EDP+HD, support 3 Synchronized displays
Power Input 5.5mm 12V In
Lan Port 2 x Intel-I210/I211 Gigabit RJ45 Lan
Com Port NO
Dimension Mini PC size 237 x 175 x 53mm Package size 320 x 260 x 80mm
Weight Gross weight 2.8 kg
Hard Disk 128 GB SSD

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 203,500.00 203500.0 INR ₹ 203,500.00

₹ 203,500.00

    This combination does not exist.

    Add to Cart
